701 Lite

Premium display quality and image analysis at an accessible price.

Durability: future-proof your investment.


Cameras come and go; SmallHD on-camera monitors are built to last. Housed in a milled aluminum frame
with a rubberized coating, the 701 Lite has durability in its DNA.

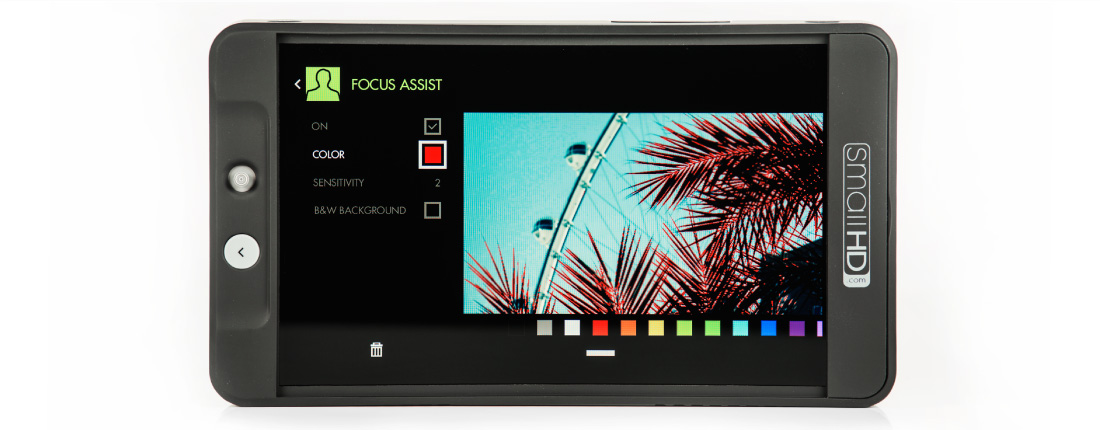

Focus Assist: intuitive tools for precision focus.

More Resolution, Less Reflection.

With a crisp HD display and the world's most customizable Focus Assist and Peaking software, the 701 Lite makes it easy to pull focus.
Joystick Zoom is incredibly handy, allowing the user to smoothly zoom/pan around the details of an image without leaving
fingerprints on the display.

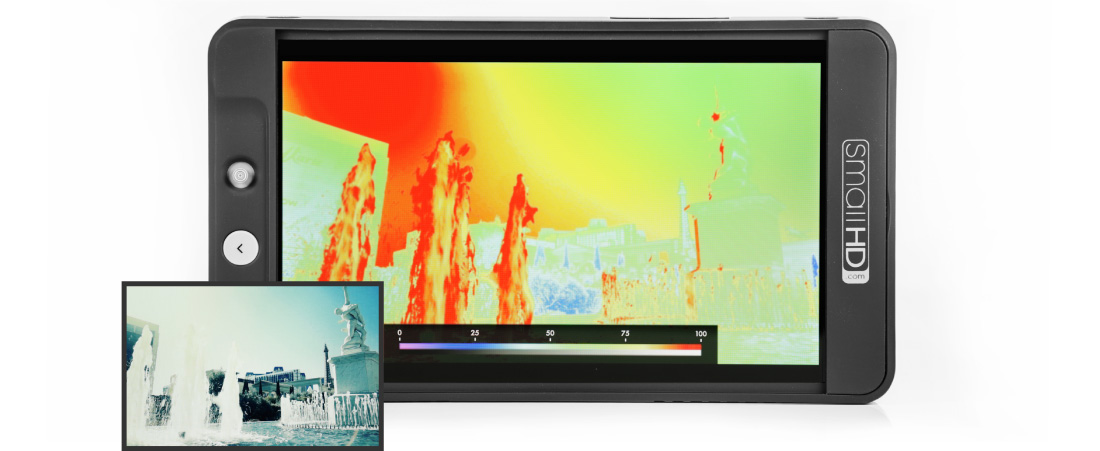

Exposure Assist: professional, accurate exposure tools.

Ruggedly Handsome, Beautifully Designed.

Whether you prefer Waveform, False Color, or Zebra, the 701 Lite has a uniquely customizable tool set to help you properly
expose your shot. Through the use of Pages, you can organize and optimize your monitoring workflow for speed and agility..

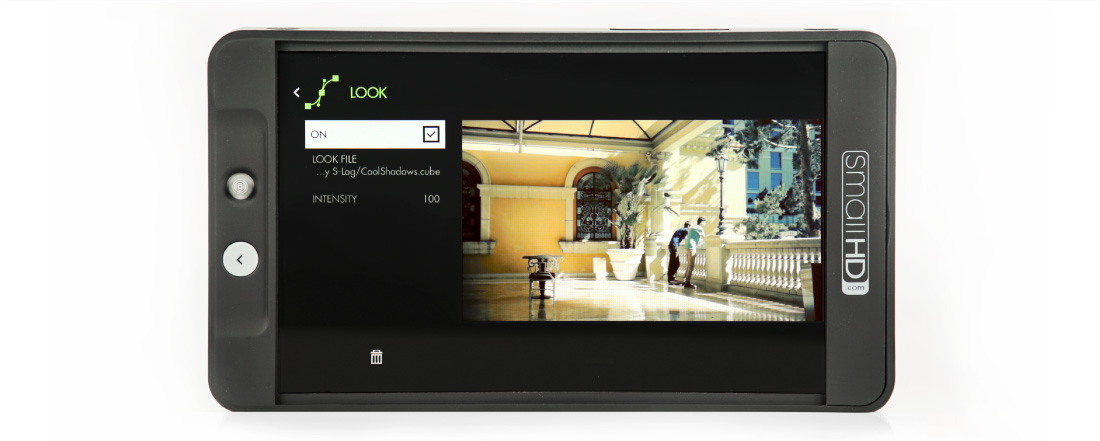

LUT Preview: creative confidence during production.

Ruggedly Handsome, Beautifully Designed.

Most large-scale productions have a crew dedicated to producing and distributing live color grades on set.
The 701 Lite brings the benefits of post production LUT preview to an affordable, 7-inch on-camera monitor.

Display

Panel Type LCD
Size Diagonal 7
Resolution 1280 x 800 (1280x720 Active)
Pixel Density (PPI) 216
Aspect Ratio 16:10 (16:9 Active)
Active Area 6.8
Brightness 450 nits
Contrast 645:1
Color Gamut 70% Rec 709
Color Depth 24 bit (8bpc)
Viewing Angle Full 179 Degrees
Backlight Type LED
Adjustable Backlight Yes
Temperature Adaptive Color No

Input Signal Types/Formats

3G-SDI
HD-SDI 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI
HDMI Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component
Composite
Audio HDMI

Output Signal Types/Formats

3G-SDI
HD-SDI
SD-SDI
HDMI Supports YCC 4:2:2, 8 bit output in RGB & YCC 4:4:4
Component
Composite
Audio

Connector Type

SDI
HDMI 1 HDMI (in), 1 HDMI (out - selectable)
Component
Composite
Audio
Power In
Power Out LP-E6 style battery x 2, Sony NPF style Battery x2, or one of each
USB

Controls

Primary Control Interface Joystick + “Back” button
Record/Capture Capture button
User Defined Functions Uses “Pages” in conjunction with the Joystick control to provide any number of user defined monitoring options.
RF Wireless Remote / External Control Compatible with SmallHD Wireless Remote (Not Included)
USB Remote / External Control

Data I/O

Storage SD Card (full-size)
USB
Wireless
Wifi

Power

Connector Type LP-E6/Sony L style
Voltage 6.0 - 8.4 volts
Power Consumption 4.9 - 7.0 watts
Battery Plate Included Canon LP-E6 / Sony NPF - Each Slot can accommodate ONE of either type battery
Recommended Power Supply LP-E6 coupler with built-in 7.2v, 2A regulator
Overload Protection No
Smart Battery Compliant Yes: Canon Style
Battery Types LP-E6 Style Batteries (Canon Recommended) Sony NPF Style (Sony Recommended)
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)

Environmental

Compliance CE, FCC, IC
Operating Temperature 30F to 90F
Storage Temperature 0F to 120F
Screen Protection 1mm Acrylic (user replaceable)
Height 4.23" (10.74cm)
Width 7.56" (19.20cm)
Depth/Length .95" (2.41cm)
Weight (Item Only without battery) 11oz (311.84g)
Weight (Packaged) 29.6oz (839.14g)
Mount Points (4) ¼-20 thread points (bottom, back, and sides)
Note:

Software

Pixel Zoom (type) 2x & 4x with smooth pan via joystick
Frame Guides Yes
DSLR Scale Canon, Nikon
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Yes - Manual Only
Image Flip (Manual/Automatic) Yes - Manual Only
Cross Conversion No
Focus Assist (Colors) Yes - User Adjustable
Peaking Yes - User Adjustable
False Color Yes - Full Range Color & Discrete Arri Style
Zebra Yes - 2 individually Configurable
Waveform Yes - Luma & RGB Style
Vectorscope Yes
PIP No
RGB Parade Yes
Histogram Yes - RGB & Luma Style
Horizon Indicator No
Image Capture Yes with Dedicated Capture Button
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTS Yes
LUT Creation No
LUT Downstream Yes
LUT Import Yes
Onion Skinning
Image Overlay Yes - User Configurable for Opacity & Blink Speed
Blue Only No
Firmware User Upgradable. Compatible with Version 2.2 and later
Audio Meters Yes
