Monitor SmallHD FOCUS OLED HDMI

Monitor SmallHD FOCUS OLED HDMI

3 200,00 zł
Brutto
 Zapytaj o dostępność

MASZ PYTANIE ?

Napisz do nas!

close

Zapytanie produktowe








+48 81 825 97 22

sklep@beiks.pl


+48 22 891 13 73

wawa@beiks.pl

Kalkulator Grenke

Product Overview Video

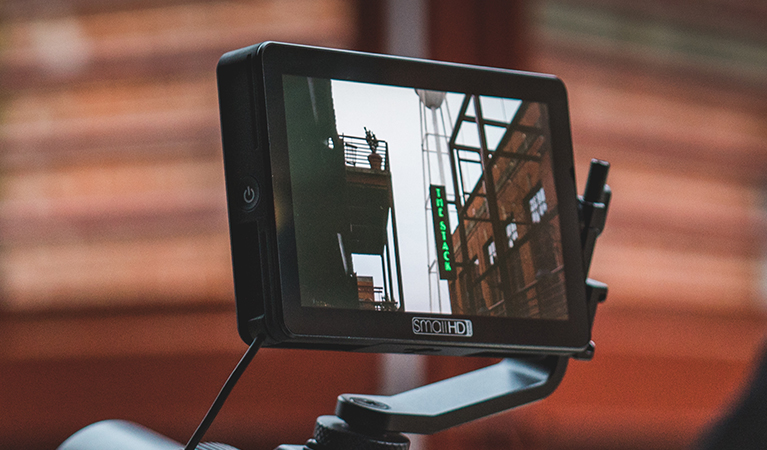

Beautiful OLED in a convenient form factor.

Image Image

The FOCUS OLED is a very sharp, wide color gamut, touchscreen monitor that’s easy attach to a camera or rig. Shipping with every FOCUS OLED is the SmallHD Tilt Arm: a lightweight, camera-top mounting solution.

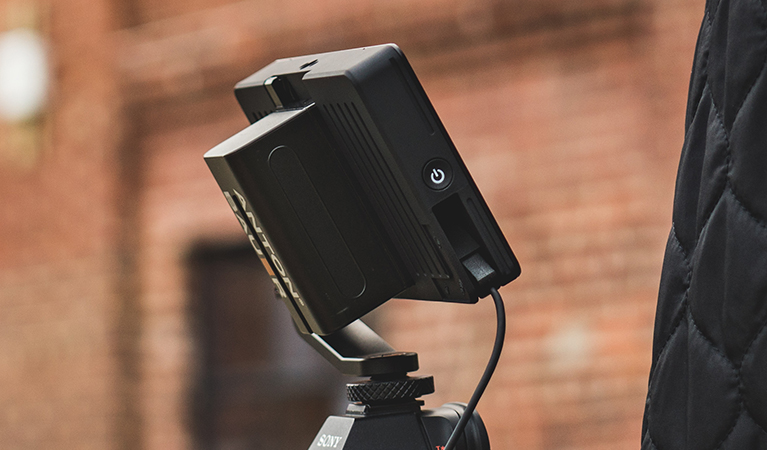

Simple, convenient power.

Image Image

The FOCUS OLED monitor has an integrated Sony L Series battery plate and the unique ability to power popular DSLR and mirrorless cameras. Using the monitor’s 7.2 volt power output and camera specific adapter cables, operators can use one battery to power their camera and monitor for several hours.

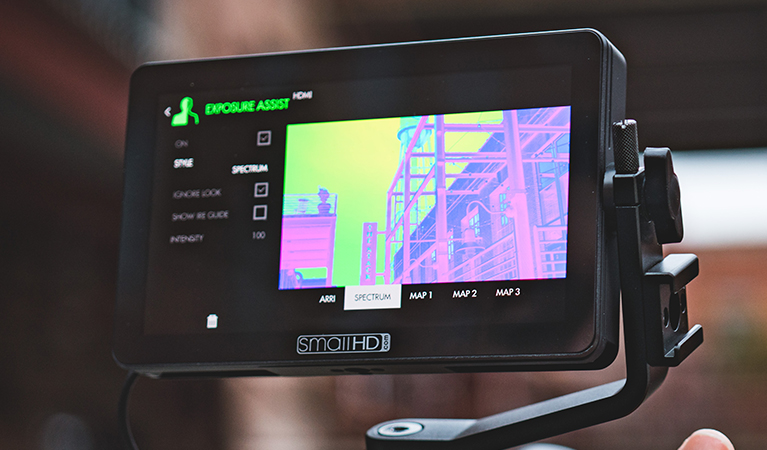

Powerful tools at your fingertips.

Image Image

Beyond the impressive hardware features of the FOCUS, is SmallHD OS3: a professional software toolset with an easy to manage, touchscreen interface. High resolution Scopes, Waveform, False Color, Focus Peaking, and real-time 3D LUTs are just some of the tools you can easily customize and access quickly.

Display

Panel Type OLED w/ Touchscreen
Size Diagonal 5.5
Resolution 1920x1080
Pixel Density (PPI) 402
Aspect Ratio 16:9
Active Area 5.5
Brightness 350 nits
Contrast 60000:1
Color Gamut 105% NTSC
Color Depth 8-bit
Viewing Angle 160 Degrees
Backlight Type N/A
Adjustable Backlight Yes
Temperature Adaptive Color No

Input Signal Types/Formats

3G-SDI Not Supported
HD-SDI Not Supported
SD-SDI Not Supported
HDMI Supports UHD-1 4K at 30/29.97 @ RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 @ RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit, YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component Not Supported
Composite Not Supported
Audio HDMI

Output Signal Types/Formats

3G-SDI Not Supported
HD-SDI Not Supported
SD-SDI Not Supported
HDMI Not Supported
Component Not Supported
Composite Not Supported
Audio Stereo Out (headphones)

Connector Type

HDMI 1x Micro-HDMI Input
Audio ⅛” Stereo mini-jack
Power In 1x Sony L-Style Battery slot
Power Out Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.
USB 1x Micro-USB for future use

Controls

Primary Control Interface Capacitive Touchscreen
Record/Capture Capture Tool

Data I/O

Storage SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades
Wireless Compatible with SmallHD BTR1 Wireless Remote

Power

Connector Type 1x Sony L-Style Battery slot, 1x barrel connector for powering camera
Voltage 6.0 - 8.4V
Power Consumption 5.76W
Recommended Power Supply Battery Only Device
Overload Protection Yes
Battery Chemistry Li-ion
Output Voltage (VDC) Mirrors Input Voltage from battery
Battery Capacity (mAh) 2000mAh - 6300mAh
Battery Charging Time (hours) Monitor does not support the charging of batteries

Environmental

Compliance CE, FCC, IC
Operating Temperature 32F to 140F
Screen Protection Ships with UltraClear Screen Protector
Height 3.45" (8.76cm)
Width .77" (1.96cm)
Depth/Length 5.54" (14.07cm)
Weight (Item Only without battery) 9oz (255.15g)
Weight (Packaged) 5oz (141.75g)
Mount Points (3) ¼-20 thread points (top, bottom, & right side)

Software

Pixel Zoom (type) 2x & 4x with smooth pan via pinch zoom gesture
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Underscan Only
Anamorphic De-Squeeze 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Spectrum, Arri Style and Fully User Customizable
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
PIP No
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Horizon Indicator No
Image Capture With Dedicated Button and Image Gallery
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation No
LUT Downstream Applied on Output Preview Page
LUT Import Via SD Card or USB Storage Device
Image Overlay Opacity Slider and Blink Setting
Blue Only No
Audio Meters Up to 8 channel
