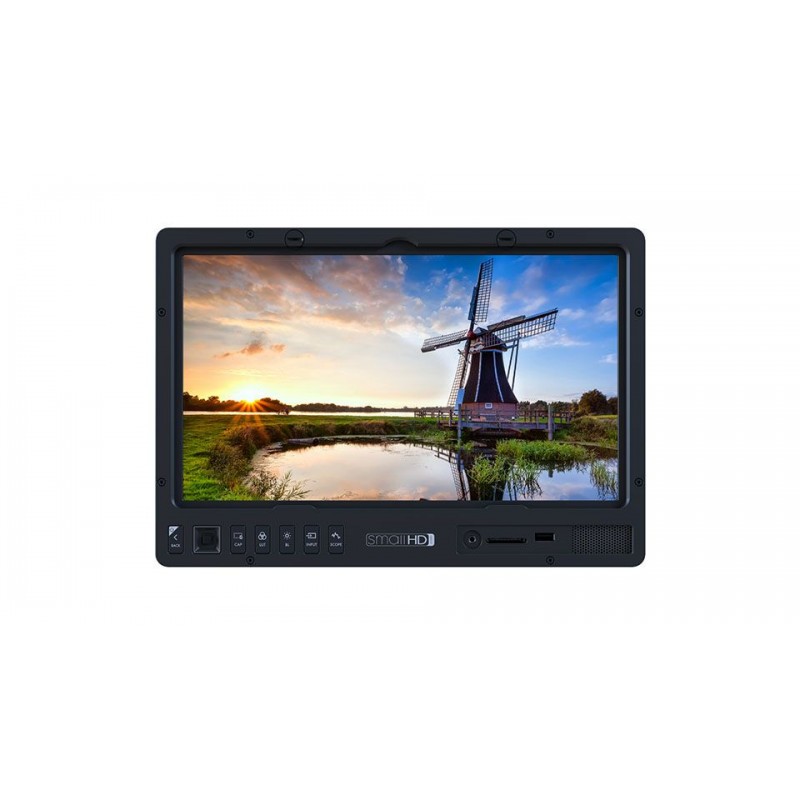

Monitor Smallhd 1303 HDR Production Monitor
      Monitor Smallhd 1303 HDR Production Monitor
      Monitor Smallhd 1303 HDR Production Monitor
      Monitor Smallhd 1303 HDR Production Monitor
      Monitor Smallhd 1303 HDR Production Monitor

      Monitor Smallhd 1303 HDR Production Monitor

      24 999,00 zł
      Brutto
      Zapytaj o dostępność

      ILOŚĆ

      Kalkulator Grenke

      Zadaj pytanie o produkt opiekunowi marki:

      • Salon Kraśnik: +48 81 825 97 22, sklep@beiks.pl

      • Salon Warszawa: +48 22 891 13 73, wawa@beiks.pl

      Write your review

      Salon
      Kraśnik:

      (81) 825-97-22

      sklep@beiks.pl


      Salon
      Warszawa:

      (22) 891-13-73

      wawa@beiks.pl

        Clarity that produces certainty.

        The display size, resolution, and pixel density of the 1303 production monitor make it an invaluable tool for precision focus pulling. When you don't have the time or proper measurements, a razor-sharp, low latency display will help you hit your marks.

        1303 HDR & STUDIO

        Calibrated for collaboration.

        Preview what you're sending downstream using the Output Preview Page, while utilizing software features like customizable focus assist and peaking on your 1303 monitor. If it's the only monitor near by, its color accuracy (100% REC 709) and broad viewing angle make it easy to share with clients and directors.

        1303 HDR & STUDIO

        Can you see me now? Good.

        With a panel roughly 3x brighter than most production monitors, the 1303 is not restrained by ambient light. Its optically bonded LCD combats glare and sunlight, allowing you to pull focus in less than ideal shooting environments.

        1303 HDR & STUDIO

        Proper power options.

        Power options for the 1303 monitor are simple and convenient. The 2-pin LEMO out allows for a seamless integration with accessories such as the Teradek Bolt wireless receiver.

        1303 HDR & STUDIO

        Travel made easy: carry-on accessories.

        All SmallHD® production monitors are equipped with the Rapid Rail Mounting System; the simplest way to connect, store, and travel with critical monitor accessories.

        1303 HDR & STUDIO

        Smooth is fast.

        Transitioning from table to C-Stand happens safely and securely with the 1303's VESA compatible mounting accessory.

        1303 HDR & STUDIO

        Boldly go.

        The 1303 monitor is the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1303 will boldly go where no other production monitor has ever gone before.

        isplay
        Panel Type IPS
        Size Diagonal 13
        Resolution 1920x1080
        Pixel Density (PPI) 170 PPI
        Aspect Ratio 16:9
        Active Area 11.59” x 6.52”
        Brightness 1500 nits
        Contrast 1140:1
        Color Gamut 100% Rec.709
        Color Depth 10­ bit
        Viewing Angle 178 Deg.
        Backlight Type LED
        Adjustable Backlight Yes
        Temperature Adaptive Color No

        Input Signal Types/Formats

        3G-SDI YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
        HD-SDI YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
        SD-SDI 480i29.97, 576i25
        HDMI Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
        Component Not Supported
        Composite Not Supported
        Audio HDMI & SDI ­ Monitor through Speakers in Front Bezel or through Headphone Jack ­ Metering up to 8 channels

        Output Signal Types/Formats

        3G-SDI YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
        HD-SDI YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
        SD-SDI Not Supported
        HDMI Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
        Component Not Supported
        Composite Not Supported
        Audio Audio sent downstream unless a LUT is loaded on the output page which disables Audio out.

        Connector Type

        SDI 2x 3G Inputs, 2x 3G Outputs
        HDMI 1x Input, 1x Output
        Component Not Supported
        Composite Not Supported
        Audio 1x Headphone Jack on Front of Monitor
        Power In 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
        Power Out 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
        USB 1x Front USB2, 2x Rear USB2

        Controls

        Primary Control Interface Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.
        Record/Capture Dedicated Image Capture Button on Front Bezel
        User Defined Functions N/A
        RF Wireless Remote / External Control N/A
        USB Remote / External Control N/A

        Data I/O

        Storage SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades
        USB 1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading
        Wireless N/A
        Wifi N/A

        Power

        Connector Type 1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max
        Voltage 12 - 34VDC
        Power Consumption 25 - 39W
        Battery Plate Included
        Recommended Power Supply AC - DC Power Converter “Brick” Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT
        Overload Protection
        Smart Battery Compliant
        Battery Types Gold Mount / V­Mount via 4­pin XLR Connector
        Battery Chemistry
        Output Voltage (VDC) 12V, 2A max via LEMO Connector
        Battery Capacity (mAh)
        Battery Charging Time (hours)

        Environmental

        Compliance FCC, IC, CE, RoHS
        Operating Temperature 32F ­- 100F
        Storage Temperature 33F - 115F
        Screen Protection Acrylic or Anti-Reflective Acrylic screen protetor available as an option
        Height
        Width
        Depth/Length
        Weight (Item Only without battery) 128oz (3628.74g)
        Weight (Packaged) 12lb (5.44kg)
        Mount Points 2x ¼”-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor
        Note:

        Software

        Pixel Zoom (type) 2x & 4x Zoom with smooth pan via joystick
        Frame Guides Yes: Preset Aspect Ratios & Customizable
        DSLR Scale Canon 5DMkii & Canon 7D
        Custom Scale Yes: Underscan & Overscan
        Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x
        Image Rotate(Manual/Automatic) Yes - Automatic or Manual
        Image Flip (Manual/Automatic) Yes - Automatic or Manual
        Cross Conversion Yes: HDMI → SDI & SDI → HDMI
        Focus Assist (Colors) Yes ­ User Adjustable Color and Intensity
        Peaking Yes ­ User Adjustable Intensity
        False Color Yes ­ Rainbow & Arri Style
        Zebra Yes ­ Dual ­ User Configurable
        Waveform Yes ­ Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
        Vectorscope Yes - with Optional Skintone line
        PIP
        RGB Parade Yes ­ Fully User Customizable
        Histogram Yes ­ Luma & RGB Style
        Horizon Indicator
        Image Capture Yes ­ With Dedicated Button
        Dailies Recording/Playback
        Master Recording
        Wifi Streaming
        Custom LUTS Yes ­ Loadable by Page or as Systemwide Color Calibration
        LUT Creation
        LUT Downstream Yes ­ Available on SDI 1 or HDMI Out
        LUT Import Via SD Card or USB storage device
        Onion Skinning
        Image Overlay Yes with Intensity Slider and Blink Setting
        Blue Only
        Firmware User Upgradable. Compatible with 1303-1703-2403-3203 Firmware Version 1.1 and later
        Audio Meters Yes ­ HDMI & SDI up to 8 channel
