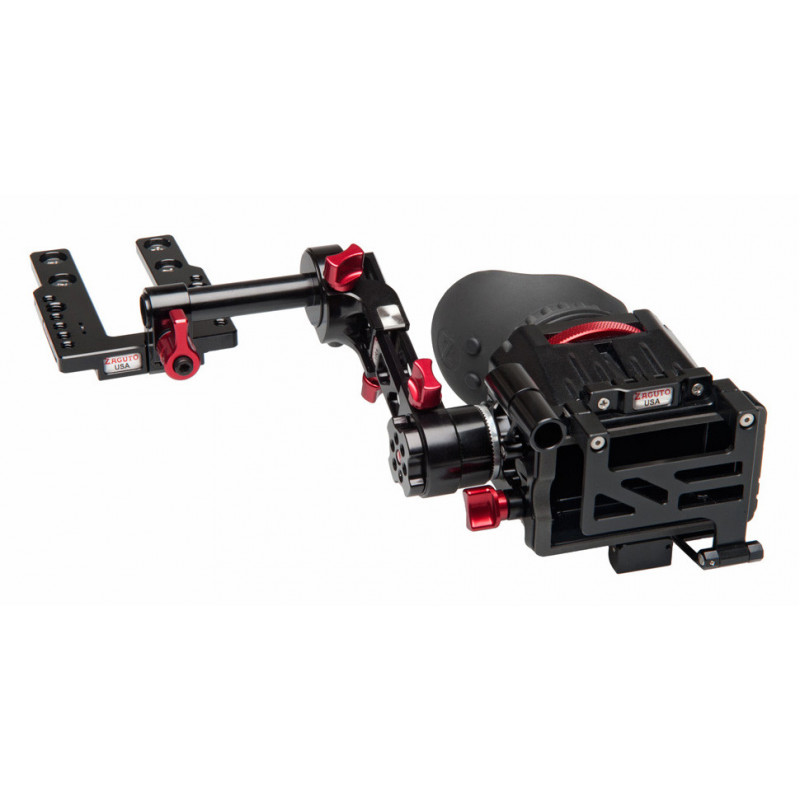

Zacuto Sony FS5 Z-Finder Pro Package

Properties:

This eyepiece magnifier was specifically designed for the Sony PXW-FS5 camera and provides a flap mechanism. The frame ensures safe grip on the LC display of the camera, the magnifier extends the image twofold and the optionally available diopters allow the optical correction of the own eyesight. The FS5 Top Plate is screwed on the camera top and allows the attachment of the monitor mount Axis Mini for Sony FS5. All closures are fitted with quick-release screws.

• • Frame is designed to slide onto the LC display of the Sony PXW-FS5

• • Zacuto Z-Finder is popped on the frame with ease, till it snaps in

• • To quickly flip the Z-Finder up the inferior red lever has to be pushed

• • Z-Finder ensures shading of incident light

• • Anti-Fog Filter prevents fogging of the ocular

• • Z-Finder magnifies the image on the LC Display of the camera twofold

• • Optical correction of the own eyesight with diopters -1, +1, +2, +3 or +4 (optionally available)

• • Z-Finder Extender Frames can be plugged onto the mounting frame from behind to adjust to the own visual acuity (frames are stackable); this causes a positive diopter compensation (for far-sighted)

• • Fine adjustment of sharpness with the rotary wheel

• • Z-Finder can be carried around the neck when not in use by employing the lanyard

• • The two Allen screws on the flap mechanism are meant for adjusting the friction

• Side-mounted rod support (FS5 Mounting Bracket) allows the mounting of the Z-Finder in two different positions on a 15mm pipe or the Sony adapter for 15 mm rods (included in delivery of the PXW-FS5)
