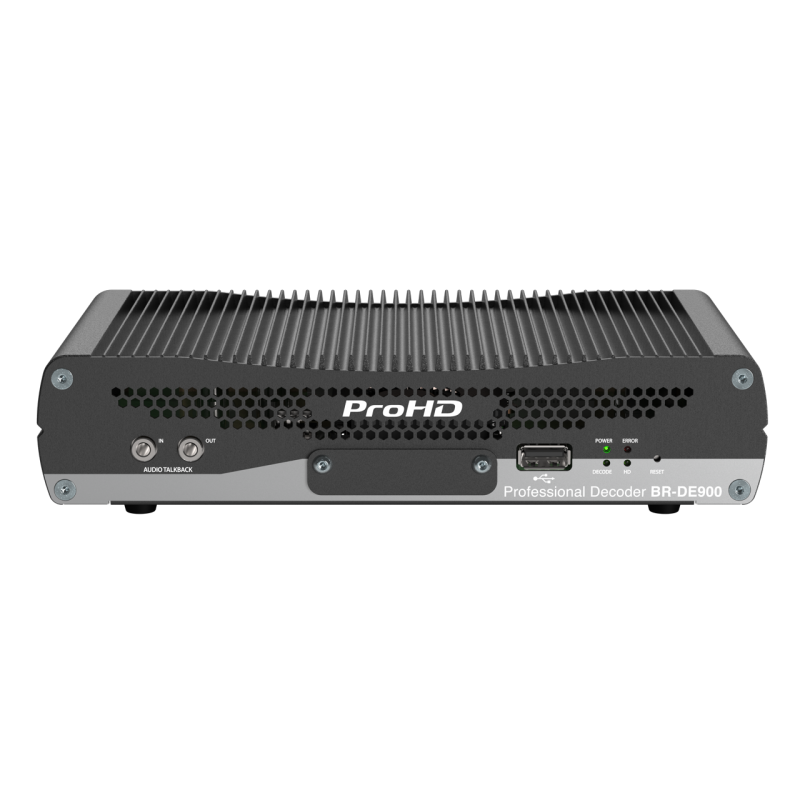

JVC IP dekoder BR-DE900
The BR-DE900 decoder is a professional grade, high performance IP decoding appliance supporting the latest bandwidth efficient HEVC/H.265 and H.264/AVC compression standards. It features a robust portable enclosure perfectly suited for field use and provides best-in-class video quality and industry-standard audio/video connectivity.
Główne cechy produktu:
- Stream forwarding feature, the BR-DE900 decoder efficiently redistributes the incoming stream within a private LAN/WAN network.
- Offers a large panel of video connectivity with dual 3G-SDI, HDMI2.0 and composite outputs which can be activated simultaneously.
- For point-to-point applications, when paired with JVC streaming cameras
- Stream forwarding feature: Decode Zixi protected stream (HEVC or H.264) over baseband video while forwarding
- ZIXI Error correction License is optional!
- Performs reliable broadcast quality decoding of HEVC or H.264 streams up to 1080p60 4:2:2 10 bits (respectively Main422 10P@L4.1 and Hi10@L4.2)
- Supporting the latest bandwidth efficient HEVC/H.265 and H.264/AVC compression standards.
- Any feed resolution/frame rate to any output resolution frame
- BR-DE900 decoder provides low latency 100% hardware based decoding
- Bandwidth efficient H.264 codec and built-in stream protection technologies, Zixi or SMPTE 2022 Pro-MPEG
- The Decoder is based on the MGW-ACE decoder with special FW for JVCKENWOOD
Specyfikacja produktu:
Info
Specification Streaming De-ENcoder (SDE)
- Video Stream Input Support 1
- HEVC & H.264 MPEG-H HEVC (ISO/IEC 23008-2)
- Profile/Level
- Profile/Level: up to Main422 10@L4.1 High Tier
- Color sampling / Bit-depth
- Color sampling / Bit-depth: up to 4:2:2 / 10 bits
- Bit rate
- Bit Rate: up to 50Mbps
- Frame rate
- Frame Rate: 1-60 fps.
- Input Resolutions
- Input Resolutions: from CIF up to 1920x1080
- Video Stream Input Support 2
- MPEG-4 AVC/H.264 (ISOIEC 14496-10 MPEG-4 AVC Rec. ITU-T H.264)
- Profile/Level 2
- Profile/Level: up to Hi10@L4.2
- Color sampling / Bit-depth 2
- Color sampling / Bit-depth: up to 4:2:2 / 10 bits
- Bit rate 2
- Bit Rate: up to 100Mbps
- Frame rate 2
- Frame Rate: 1-60 fps.
- Input Resolutions 2
- Input Resolutions: from CIF up to 1920x1080
- Audio Stream Input Support
- MPEG-4 AAC-LC (ISO/IEC 14496-3) Up to x2 stereo channel
- Audio Sample Rate
- Sample Rate: 48kHz
- Audio Bit rate
- Bit Rate: 16-192kbs
- Output Resolutions / Frame Rates
1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.976
1920x1080i @ 60, 59.94, 50 Hz
1280x720p @ 60, 59.94, 50, 30, 29.97, 25
720x480i @ 59.94 Hz (NTSC)
720x576i @ 50 Hz (PAL)
- Network Protocols
- UDP TS
- Yes
- RTP TS
- Yes
- RTP ES
- Yes
- ZIXI
- Yes, Error-Correction (HEVC and H.264) – Zixi P2P and Broadcaster modes
- RTP TS ProMPEG
- Yes, with ProMPEG Forward Error Correction
- Network Interfaces
- Ethernet Ports
- 2x Gigabit Ethernet ports for management and/or streaming
- Other Ports
- VB-ASI Input and Output (available in future release)
- Video Outputs
- HDSDI
- Yes, 2 x 3G/HD-SDI/SD-SDI (SMPTE 259, SMPTE 274M, SMPTE 296M, SMPTE 424M)
- HDMI
- Yes, 1 x V 2.0
- Composite
- Yes
- Audio Outputs
- Embedded SDI
- Yes, SDI x 2 with Embedded audio (PCM support)
- Embedded HDMI
- Yes, HDMI Embedded audio (PCM support)
- Digital
- Yes, AES3 Digital Audio (BNC Female)
- Analog unbalanced
- Yes, 1 x Analog unbalanced stereo audio, AC-coupled (RCA Female)
- Analog Balanced
- Yes, 1 x Balanced analog stereo audio (XLR Male)
- Security
- Real-time AES decryption for video, audio and metadata
- Management
Secure Web based remote management interface (HTTPS)
Dashboard with detected channel characteristics description and active outputs
Zixi streaming statistics for easier configuration and enhanced Quality of Service
Status LED's for power, network activity, error and streaming indications
Autostart mode recovers saved configuration after power cycle
Remote firmware and software upgrade capability via browser and command line·
Hardware push-button for restoring unit to factory settings
Recovery or initialization of Ethernet settings over USB thumb drive
Dimensions De-ENcoder (SDE)
- Physical
- Dimensions
- 42.4mm H / 202mm W / 117.5mm D
- Weight
- 1.1kg
- Enclosure
- Industrial-grade, Aluminum case with mounting holes for seamless installation
- Environmental
- Operating Temperature in Celsius
- 0 degree to 50 degree
- Relative Humidity
- 5% to 95% (non-condensing)
- Power Input
- 20VDC to 50VDC
- Power consumption
- 22W
